Data-Driven Smart Buildings

HiLo Living Laboratory

HiLo (High performance, Low emissions) is a unit in NEST (Next Evolution in Sustainable Building Technologies), a research and innovation building located in Dübendorf (Switzerland) operated by the Swiss Federal Laboratories for Materials Science and Technology (Empa). It is the result of an integrated design process led by the Architecture and Building Systems (A/S) and Block Research Group (BRG) at Eidgenössische Technische Hochschule Zürich (ETH Zürich) and became fully operational in the spring of 2022.

Project Information

Location

Zürich, Switzerland

Building Typology

Office Building

Technology Installed / Proposed

The HiLo unit integrates a combination of passive strategies; advanced control systems; efficient decentralised systems for heating, cooling and ventilation; as well as on-site electricity generation. The unit is equipped with a comprehensive sensor network that collects data every minute (changeable if needed) and monitors both indoor and outdoor climates, along with the energy consumption and generation. The collected data is stored in a specially developed platform tailored for research purposes. While not fully available to the public, this data provides a valuable resource for ongoing research.

Data Availability

–

Status

Operational - Results Available

Project Aim

HiLo serves as a showcase for the application of lightweight structural components, including a thin-shell roof and a funicular floor system, both of which were developed by BRG. To fully showcase the structural achievement of the double-curved thin shell roof, the two-storey HiLo unit predominantly adopted an open-plan office with only two enclosed offices.

A core strategy of HiLo’s energy concept is the maximisation of the structural components’ potential, while also considering their impact on the overall building life cycle in terms of embodied energy. Achieving this goal involved a combination of passive strategies; advanced control systems; use of efficient decentralised systems for heating, cooling and ventilation; as well as on-site electricity generation. Key energy systems in HiLo are:

An adaptive solar façade developed by the A/S Group consisting of 30 photovoltaic modules that manage solar irradiation for reduced heating/ cooling loads and on-site electricity generation.
Thermally activated building systems integrated into the lightweight funicular floors.
Hybrid variable refrigerant flow heating and cooling system and mechanical ventilation with heat recovery system developed by Mitsubishi Electric. Both systems are connected to cloud-based remote monitoring and control system.

HiLo, among other units, is a node in a district energy hub (Empa ehub) using multiple thermal and electrical grids. These grids operate bidirectionally, allowing surplus energy to be transferred between HiLo, the ehub and other units.

Additional Information

For additional information, please visit the HiLo website, which also provides links to publications related to HiLo: https://www.empa.ch/web/nest/hilo.

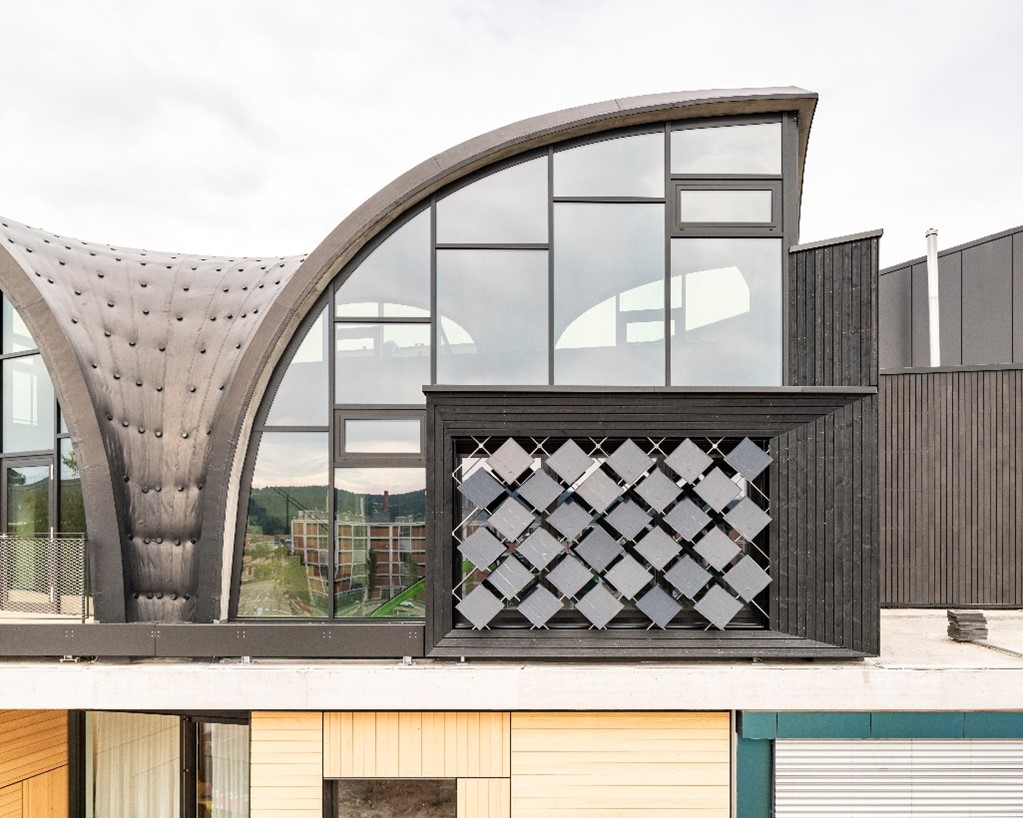

NEST unit HiLo south-facing adaptive solar façade

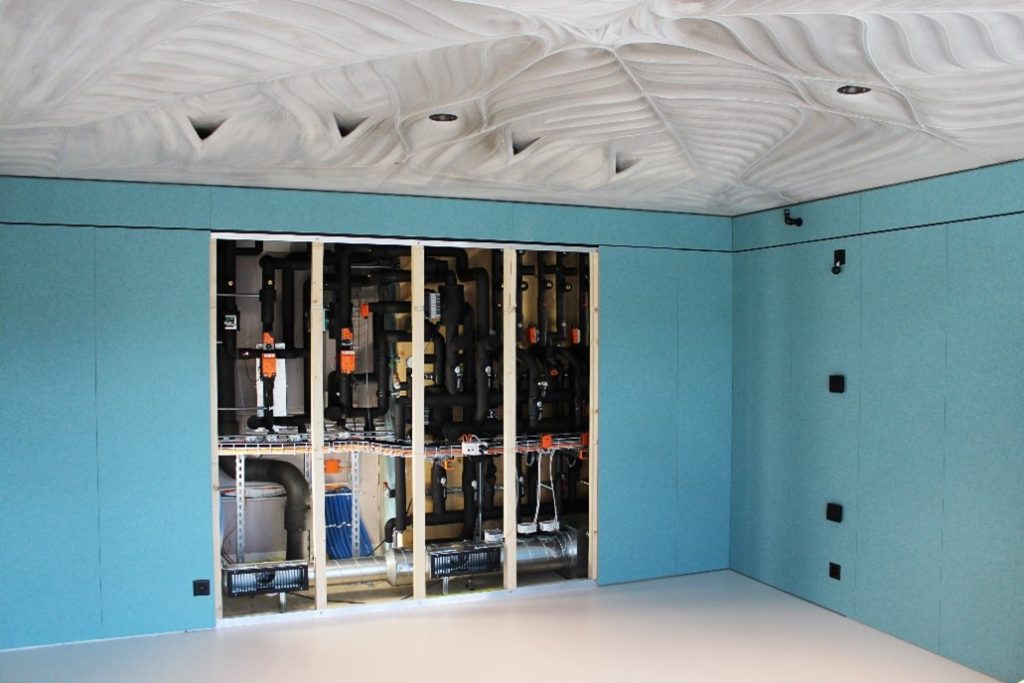

Central energy hub of the NEST building

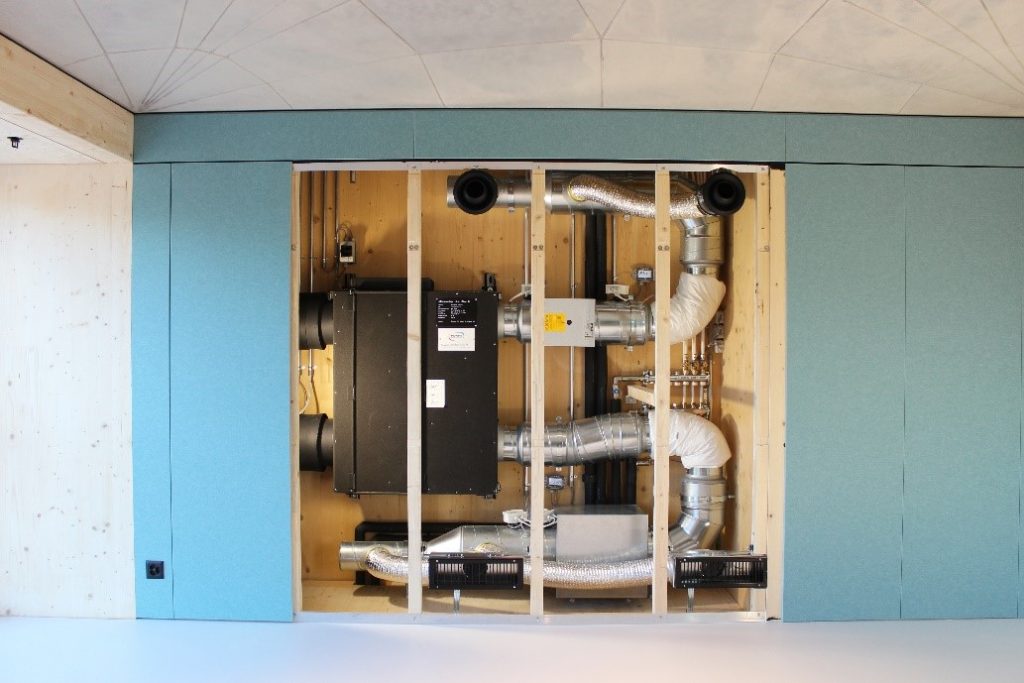

HiLo ventilation system
